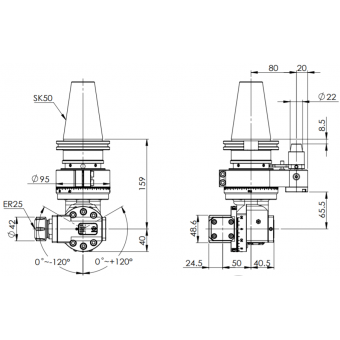

◎ SK50-ER25 Universal Angle Head (AHL Type)

◎ Run-out : 0.002 mm

◎ Material : Aerospace Alu. Alloy / Ductile Cast Iron / Alloy Steel

◎ R.P.M. : Max. 6000 RPM

◎ Torque : Max. 25 Nm

◎ Drilling : Max. 14 mm

◎ Tapping : Max. M10

◎ Gear Ratio : 1 : 1

◎ Standard Accessory : Open End Wrench, ER Wrench, ER Nut

◎ Output Rotation : Same as Input Rotation


IM_EXTRA_TAB_ADD1

◎  Cutting angle can be set from 0°~ ±120°for various applications.

◎  Compact design provides extra strength, oil-proof, dust-proof, and duration.

◎  Can be automatic tool changed. Increases productivity.

◎  Enclosed Positioning Pin: Cutting Direction can be adjusted from 0~360 degrees. It allows higher clamping torque and cutting direction could remain during the machining.
