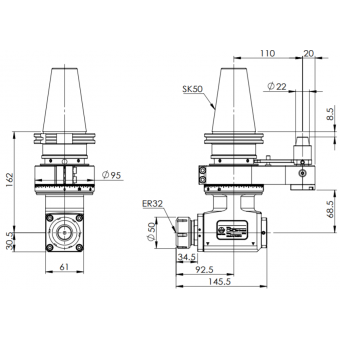

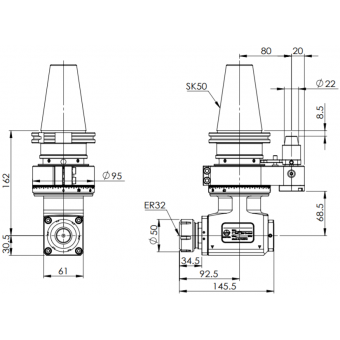

◎ SK50-ER32 90°Angle Head (AHL Type)

◎ Run-out：0.002 mm

◎ Material：Aerospace Alu. Alloy / Ductile Cast Iron / Alloy Steel

◎ R.P.M.：Max. 6000 RPM

◎ Torque：Max. 30 Nm

◎ Drilling：Max. 16 mm

◎ Tapping：Max. M12

◎ Gear Ratio：1：1

◎ Standard Accessory：Open End Wrench, ER Wrench, ER Nut

◎ Output Rotation：Reverse to Input Rotation


IM_EXTRA_TAB_ADD1

◎ Compact and lighter body design is suitable for drilling, milling, and tapping application.

◎ Can be automatic tool changed. Increases productivity.

◎ Enclosed Positioning Pin: Cutting Direction can be adjusted from 0~360 degrees. It allows higher clamping torque and cutting direction could remain during the machining.
