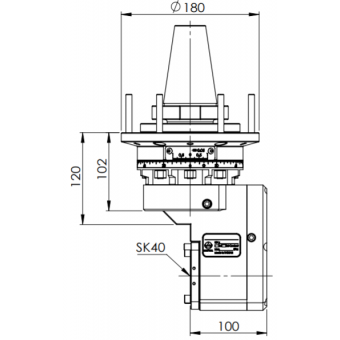

◎ SK50-SK40 Aluminum Offset Flange-Mounted Angle Head (AHK Type)

◎ Run-out：0.002 mm

◎ Material：Aerospace Alu. Alloy & Ductile Cast Iron

◎ R.P.M.：Max. 4000 RPM

◎ Torque：Max. 60 Nm

◎ Drilling：Max. 20 mm

◎ Tapping：Max. M16

◎ Gear Ratio：1：1

◎ Standard Accessory：Tool-Locking Plate, L Type Wrench

◎ Output Rotation：Same as Input Rotation


IM_EXTRA_TAB_ADD1

◎ The output interface of Taper40 ensures wider-angle application with various SK40 tool holders.

◎ Mount directly on the machine spindle surface. Rugged body construction for heavy duty cutting.

◎ Cutting Direction can be adjusted from 0~360 degrees. It allows higher clamping torque and cutting direction could remain during the machining.

◎ Offset design ensures compact body and largely eliminates interference.

◎ Offset design eliminates the protrusion of tools and enhances working rigidity.

◎ Special tool-locking design ensures easier too engagement and release.
