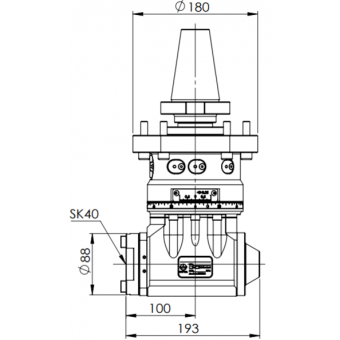

◎ SK50-SK40 Flange-Mounted Angle Head (VTC)(AHK Type)

◎ Run-out：0.002 mm

◎ Material：Alloy Steel

◎ R.P.M.：Max. 6000 RPM

◎ Torque：Max. 100 Nm

◎ Drilling：Max. 24 mm

◎ Tapping：Max. M18

◎ Gear Ratio：1：1

◎ Standard Accessory：Open End Wrench, L Type Wrench

◎ Output Rotation：Reverse to Input Rotation


IM_EXTRA_TAB_ADD1

◎ Can be applied on Vertical Turning Center, Plano Milling Machine and various machines with Adapter Plate.

◎ Built-in spindle positioning system. The flexible design of connection part which is suitable for various magazines makes the ATC application possible.

◎ Can be connected to tooth-shaped Flange Disc or any shape of Machine Spindle surface to reach Max. rigidity.

◎ Hardened precision spiral bevel gears ensure stable performance with long service life.

◎ Cutting direction can be adjusted from 0 ~ 360 degree.
