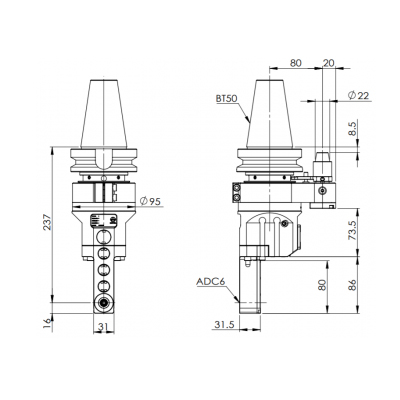

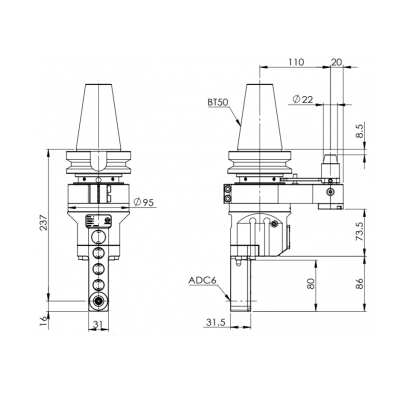

◎ BT50-ADC6 Angle Head-Ultra Slim (AHL Type)

◎ Run-out : 0.002 mm

◎ Material : Alloy Steel

◎ R.P.M. : Max. 6000 RPM

◎ Torque : Max. 8 Nm

◎ Drilling : Max. 6 mm

◎ Tapping : Max. M5

◎ Gear Ratio : 1：1

◎ Standard Accessory : T Handle Hex. Wrench

◎ Output Rotation : Reverse to Input Rotation


IM_EXTRA_TAB_ADD1

◎ Compact and longer body design is suitable for machining the deep-hole and deep-slot.

◎ Can be automatic tool changed. Increases productivity.

◎ Enclosed Positioning Pin: Cutting Direction can be adjusted from 0~360 degrees. It allows higher clamping torque and cutting direction could remain during the machining.
