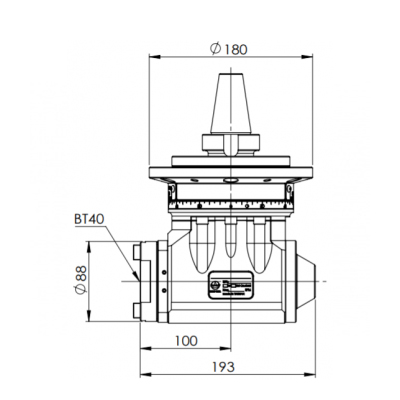

◎BT40-BT40 Flange-Mounted Angle Head (AHK Type)

◎Run-out：0.002 mm

◎Material：Ductile Cast Iron

◎R.P.M.：Max. 6000 RPM

◎Torque：Max. 100 Nm

◎Drilling：Max. 24 mm

◎Tapping：Max. M18

◎Gear Ratio：1：1

◎Standard Accessory：Open End Wrench, L Type Wrench

◎Output Rotation：Reverse to Input Rotation


IM_EXTRA_TAB_ADD1

◎ The output interface of Taper40 ensures wide-range application with various BT40 tool holders.

◎ Mount directly on the machine spindle surface. Rugged body construction for heavy duty cutting.

◎ Interchangeable among same taper machines by changing the mounting plate.

◎ Hardened precision spiral bevel gears ensure stable performance with long service life.

◎ Cutting direction can be adjusted from 0~360 degree.
