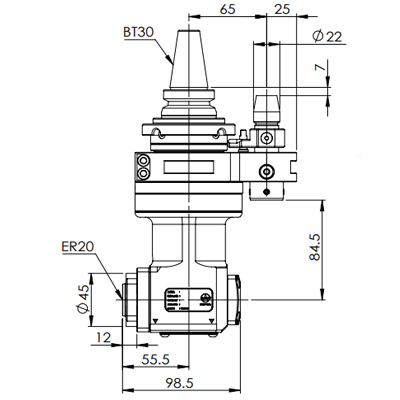

◎BT30-ER20 90° Aluminum Angle Head (AHM Type-Internal Nut)

◎Run-out：0.002 mm

◎Material：Aerospace Aluminum Alloy

◎R.P.M.：Max. 6000 RPM

◎Torque : Max. 15 Nm

◎Drilling : Max. 12 mm

◎Tapping : Max. M8

◎Gear Ratio：1：1

◎Standard Accessory：Open End Wrench, ER I.N. Wrench, ER Nut

◎Output Rotation : Reverse to Input Rotation


IM_EXTRA_TAB_ADD1

◎6000 rpm high speed processing. Increases machining efficiency.

◎Compact and lighter body design is suitable for machines with light-load magazine and high speed ATC system.

◎Can be automatic tool changed. Increases productivity.

◎Enclosed Positioning Pin: Cutting Direction can be adjusted from 0~360 degrees. It allows higher clamping torque and cutting direction could remain during the machining.
