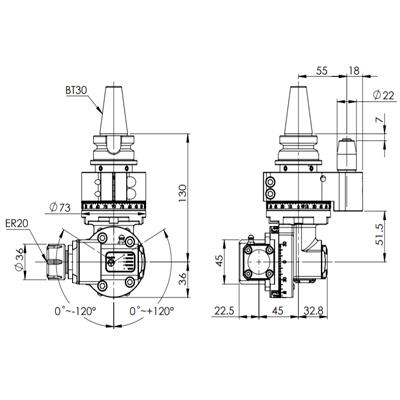

◎ BT30-ER20 Light Angle Head-Universal (AHL Type)

◎ Run-out：0.002 mm

◎ Material：Alloy Steel

◎ R.P.M.：Max. 6000 RPM

◎ Torque：Max. 9 Nm

◎ Drilling：Max. 10 mm

◎ Tapping：Max. M6

◎ Gear Ratio：1：1

◎ Standard Accessory：Open End Wrench, ER Wrench, ER Nut

◎ Output Rotation：Same as Input Rotation


IM_EXTRA_TAB_ADD1

◎  Cutting angle can be set from 0°~ ±120°for various applications.

◎  Compact design provides extra strength, oil-proof, dust-proof, and duration.

◎  Can be automatic tool changed. Increases productivity.

◎  Enclosed Positioning Pin: Cutting Direction can be adjusted from 0~360 degrees. It allows higher clamping torque and cutting direction could remain during the machining.
