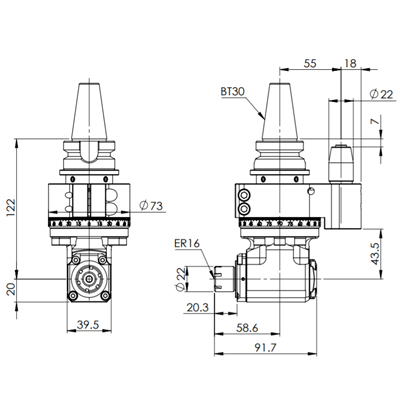

◎ BT30-ER16 Light Angle Head (AHL Type)

◎ Run-out ： 0.002 mm

◎ Material ： Alloy Steel

◎ R.P.M.：Max. 8000 RPM

◎ Torque：Max. 12 Nm

◎ Drilling：Max. 10 mm

◎ Tapping：Max. M8

◎ Gear Ratio ： 1：1

◎ Standard Accessory： M Type Wrench, Pin Wrench, ER Nut

◎ Output Rotation ： Reverse to Input Rotation


IM_EXTRA_TAB_ADD1

◎ Compact and lighter body design is suitable for drilling, milling, and tapping application.

◎ Can be automatic tool changed. Increases productivity.

◎ Enclosed Positioning Pin: Cutting Direction can be adjusted from 0~360 degrees. It allows higher clamping torque and cutting direction could remain during the machining.
