描述

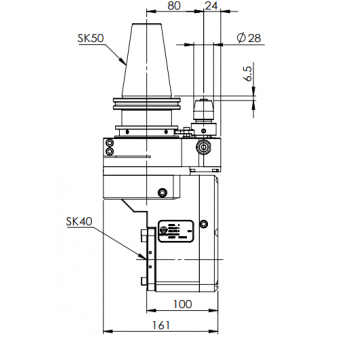

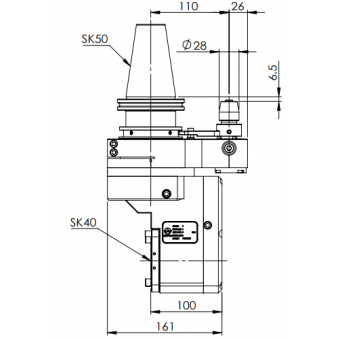

◎ SK50-SK40 90° Aluminum Offset Angle Head (AHM Type)

◎ Run-out：0.002 mm

◎ Material：Aerospace Aluminum Alloy / Alloy Steel

◎ R.P.M.：Max. 4000 RPM

◎ Torque : Max. 60 Nm

◎ Drilling : Max. 20 mm

◎ Tapping : Max. M16

◎ Gear Ratio：1：1

◎ Standard Accessory：Tool-Locking Plate, L Type Wrench

◎ Output Rotation : Same as Input Rotation


IM_EXTRA_TAB_ADD1

◎The output interface of Taper40 ensures wide-range application with various BT40/SK40/CAT40Tool Holder.

◎Offset design ensures compact body and largely eliminates interference.

◎Offset design eliminates the protrusion of tools and enhances working rigidity.

◎Special tool-locking design ensures easier tool engagement and release.

◎Can be automatic tool changed. Increases productivity.

◎Enclosed Positioning Pin: Cutting Direction can be adjusted from 0~360 degrees. It allows higher clamping torque and cutting direction could remain during the machining.
