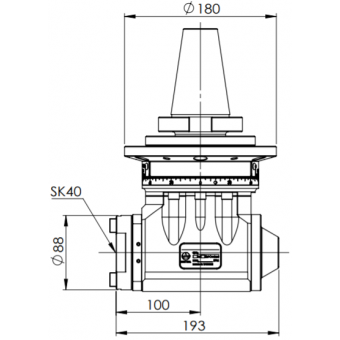

◎ SK50-SK40 Flange-Mounted Angle Head (AHK Type)

◎ Run-out：0.002 mm

◎ Material：Ductile Cast Iron

◎ R.P.M.：Max. 6000 RPM

◎ Torque：Max. 100 Nm

◎ Drilling：Max. 24 mm

◎ Tapping：Max. M18

◎ Gear Ratio：1：1

◎ Standard Accessory：Open End Wrench, L Type Wrench

◎ Output Rotation：Reverse to Input Rotation


IM_EXTRA_TAB_ADD1

◎ The output interface of Taper40 ensures wide-range application with various SK40 tool holders.

◎ Mount directly on the machine spindle surface. Rugged body construction for heavy duty cutting.

◎ Interchangeable among same taper machines by changing the mounting plate.

◎ Hardened precision spiral bevel gears ensure stable performance with long service life.

◎ Cutting direction can be adjusted from 0~360 degree.
