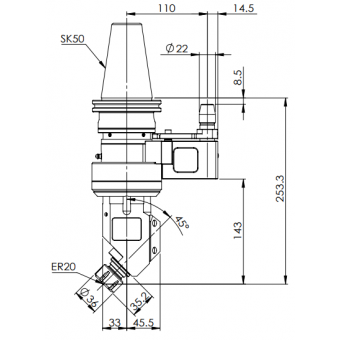

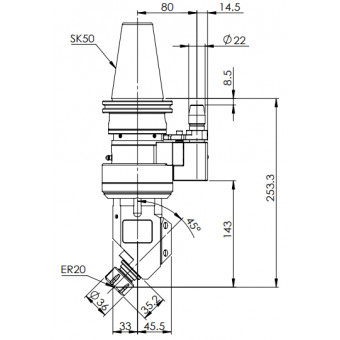

◎ SK50-ER20 45° Angle Head (AHD Type)

◎ Run-out：0.002 mm

◎ Material：Ductile Cast Iron

◎ R.P.M.：Max. 4000 RPM

◎ Torque：Max. 15 Nm

◎ Drilling：Max. 10 mm

◎ Tapping：Max. M8

◎ Gear Ratio：1：1

◎ Standard Accessory：Hook Spanner, End Wrench, ER Nut

◎ Output Rotation：Reverse to Input Rotation


IM_EXTRA_TAB_ADD1

◎ The 45 degree design ensures 45 degree drilling, milling and curved surface processing.

◎ Can be automatic tool changed. Increases productivity.
