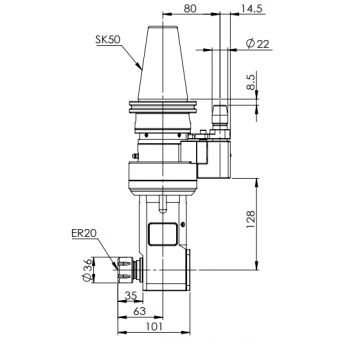

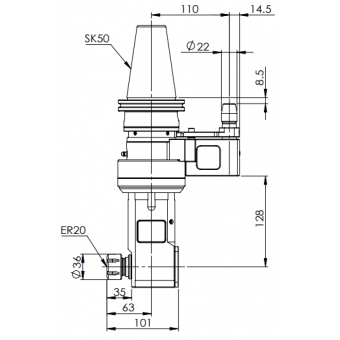

◎ SK50-ER25 90° Angle Head-Longer (AHD Type)

◎ Run-out：0.002 mm

◎ Material：Ductile Cast Iron

◎ R.P.M.：Max. 4000 RPM

◎ Torque：Max. 25 Nm

◎ Drilling：Max. 12 mm

◎ Tapping：Max. M10

◎ Gear Ratio：1：1

◎ Standard Accessory：Hook Spanner ER Wrench, ER Nut

◎ Output Rotation：Reverse to Input Rotation


IM_EXTRA_TAB_ADD1

◎ The body is made of Ductile Cast Iron.

◎ High strength steel; stable machining.

◎ The AHD series is suitable for firm and fast face milling.

◎ Can be automatic tool changed. Increases productivity.
