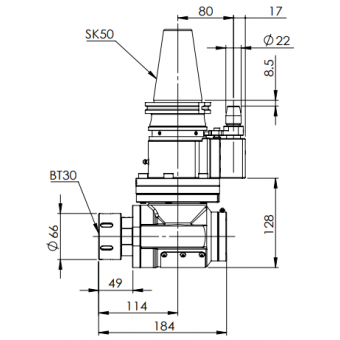

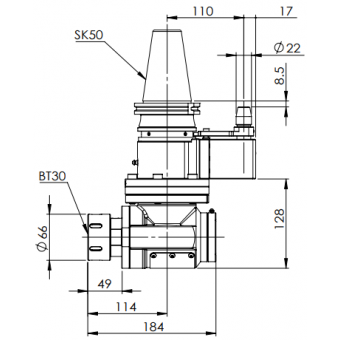

◎ SK50-BT30 90° Angle Head (AHB Type)

◎ Run-out：0.002 mm

◎ Material：Ductile Cast Iron

◎ R.P.M.：Max. 6000 RPM

◎ Torque : Max. 70 Nm

◎ Drilling : Max. 20 mm

◎ Tapping : Max. M16

◎ Gear Ratio：1：1

◎ Standard Accessory：Hook Spanner, Open End Wrench, BT Nut

◎ Output Rotation : Reverse to Input Rotation


IM_EXTRA_TAB_ADD1

◎ The body is made of Ductile Cast Iron.

◎ High strength steel; stable machining.

◎ The output interface of BT30 ensures wide-range application with various BT30 tool holders.

◎ Can be automatic tool changed. Increases productivity.
