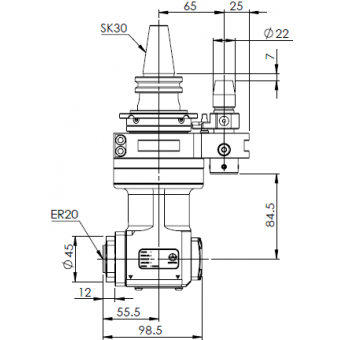

◎ SK30-ER20 90° Aluminum Angle Head (AHM Type-Internal Nut)

◎ Run-out：0.002 mm

◎ Material：Aerospace Aluminum Alloy

◎ R.P.M.：Max. 6000 RPM

◎ Torque：Max. 15 Nm

◎ Drilling：Max. 12 mm

◎ Tapping：Max. M8

◎ Gear Ratio：1：1

◎ Standard Accessory：Open End Wrench, ER I.N. Wrench, ER Nut

◎ Output Rotation：Reverse to Input Rotation


IM_EXTRA_TAB_ADD1

◎ 6000 rpm high speed processing. Increases machining efficiency.

◎ Compact and lighter body design is suitable for machines with light-load magazine and high speed ATC system.

◎ Can be automatic tool changed. Increases productivity.

◎ Enclosed Positioning Pin: Cutting Direction can be adjusted from 0~360 degrees. It allows higher clamping torque and cutting direction could remain during the machining.
