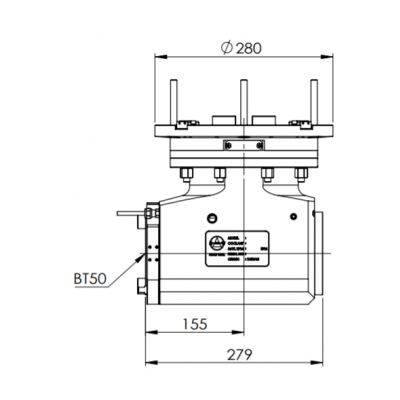

◎ BT50-BT50 Heavy Duty Angle Head (AHK Type)

◎ Run-out：0.002 mm

◎ Material：Ductile Cast Iron

◎ R.P.M.：Max. 4000 RPM

◎ Torque：Max. 300 Nm

◎ Drilling：Max. 40 mm

◎ Tapping：Max. M30

◎ Gear Ratio：1：1

◎ Standard Accessory：Open End Wrench, L Type Wrench

◎ Output Rotation：Same as Input Rotation


IM_EXTRA_TAB_ADD1

◎ The output interface of Taper50 ensures wide-range application with various BT50 tool holders.

◎ Mount directly on the machine spindle surface. Rugged body construction for heavy duty cutting.

◎ Cutting direction can be adjusted from 0 ~ 360 degree.
