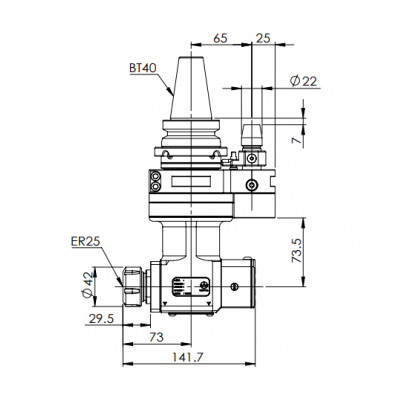

BT40-ER25 90° Aluminum Angle Head (AHM Type-Internal Coolant)

Run-out：0.002 mm

Material：Aerospace Aluminum Alloy

R.P.M.：Max. 6000 RPM

Torque：Max. 15 Nm

Drilling：Max. 12 mm

Tapping：Max. M8

Gear Ratio：1：1

Standard Accessory：Open End Wrench, ER Wrench, ER Nut

Output Rotation：Reverse to Input Rotation

Max. Coolant Bar：30 bar


IM_EXTRA_TAB_ADD1

◎6000 rpm high speed processing. Increases machining efficiency.

◎Compact and lighter body design is suitable for machines with light-load magazine and high speed

ATC system.

◎Can be automatic tool changed. Increases productivity.

◎Enclosed Positioning Pin: Cutting Direction can be adjusted from 0~360 degrees. It allows higher clamping torque and cutting direction could remain during the machining.
